SVC-2 Voltammetry cell

SVC-2 Voltammetry cell can be used for 4 modes voltammetry cell setup.
Each voltammetry cell has its specific feature.Also can apply as an oxygen-free voltammetry cell.
Setting the sample holder of 9.0 mm of the diameter , it enables small sample measurement (100 - 200 uL).


SVC-2 Voltammetry cell

  • Feature
  • Content
  • For various types of electrodes
  • Sample volume from 5 to 10 mL
  • Easy removal of the dissolved oxygen

4 modes application

Four ways applications:

VC-2 Voltammetry cell mode Set the Teflon cap adaptor to the Teflon cap.
The Teflon cap adaptor is fixed with a silicon O-ring to work in an oxygen-free condiction.
If you do not need the oxygen-free condiction, then the silicon O-ring can be taken out from the Teflon cap.

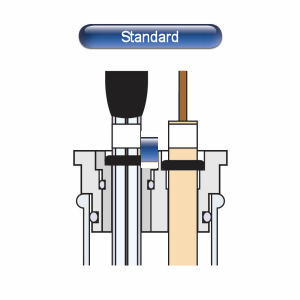

Standard mode fits:
- Working electrode (until OD: 6.0 mm)
- Reference electrode
- Platinum counter electrode 5.7 cm
- Purging tube
Take out the Teflon cap adaptor from the Teflon cap.
Working electrode can be fitted directly to the Teflon cap.
The O-ring will fit perfectly. It permits to have the oxygen-free condition.

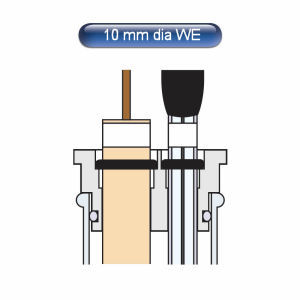

10 mm WE mode fits:
- Working electrode (OD: 10.0 mm)
- Reference electrode
- Platinum counter electrode 5.7 cm
- Purging tube
VC-5 Voltammetry cell mode
MCA Voltammetry cell mode Take out the Teflon cap adaptor from the Teflon cap, and set the Sample holder of the 9.0 mm of the diameter (optional item).
Set the working electrode and counter electrode into the Sample holder.

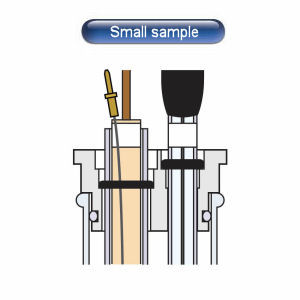

Small sample mode fits:
- Sample holder (OD: 9.0 mm)
  →Working electrode
  →Counter electrode
- Reference electrode
- Purging tube

Do not work in a oxygen-free condition.
Take out the Teflon cap adaptor, and set the Sample holder of the 9.0 mm diameter (optional item).
Set the reference electrode into the sample holder.

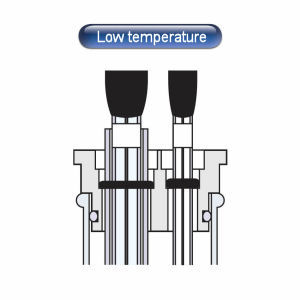

Low temperature mode fits:
- Sample holder (OD: 9.0 mm)
  →Reference electrode
- Platinum counter electrode 5.7 cm
- Micro electrode
- Purging tube
SVC-3 Voltammetry cell mode


Catalog No. Description
012668 SVC-2 Voltammetry cell
Contents
(001056) Sample vial (20 ml) 7 pcs
002222 Platinum counter electrode 5.7 cm
012670 Teflon cap for SVC-2
(010537) Purging tube 30 cm
Optional item
012189 O-ring for SVC-3 (10 pcs)
012177 Sample holder dia 9 mm (2 pcs)
001209 Cell holder for 20 mL vial

Working electrode and reference electrode are sold separately.
Each component could be purchased separately.
001056 Sample vial (20 mL) (10 pcs)
010537 Purge tube (ETFE) (1 m)
