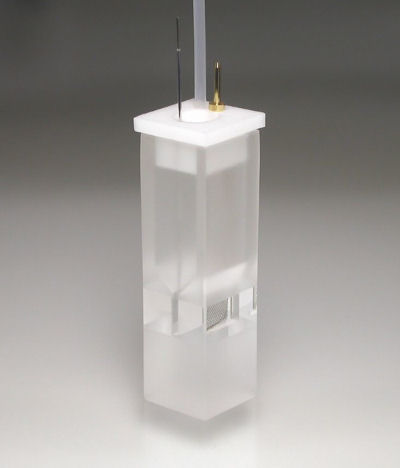

Spectroelectrochemical Cell
Spectroelectrochemistry (SEC) is aimed at the investigation of electrochemical reaction mechanism and the interface structure between electrolyte solution and electrode. Remarkable progress in this field and related technology enables SEC to be applied in wide areas. Nowadays, the relation between absorbance and potential for reversible or quasi-reversible system is theoretically elucidated, on which basis the analysis of electrochemical characteristics becomes possible for the system otherwise difficult with only the result of voltammogram. Typical example is redox enzyme cytochrome c and methylene-blue.
- Real-time monitoring of chromatic change by red-ox reaction
- Analysis of the charge transfer at the electrode/liquid surface
- Spectrometric measurement of near/surface of electrodes
- Absorbing spectrum of the product and intermediate
- Parameters; concentration, diffusion coefficient and life time

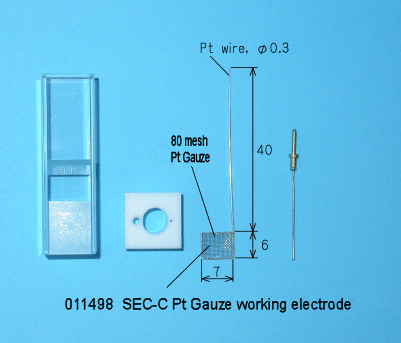

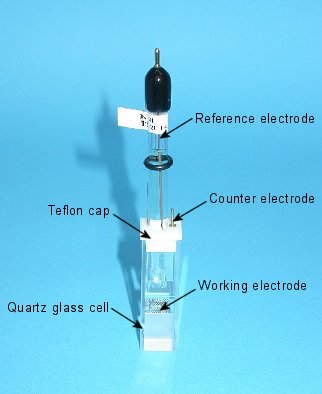

Catalog No. Description 012904 SEC-C Thin Layer Quartz Glass Spectroelectrochemical cell Kit 012905 SEC-C Thin Layer Quartz Glass Spectroelectrochemical cell Kit (Au) Components 011498 SEC-C Pt Gauze working electrode (for 012904) 012017 SEC-C Au Gauze working electrode (for 012905) 012906 SEC-C Pt counter electrode 012907 SEC-C Thin Layer Quartz Glass cell Light pass length: 1 mm 011501 SEC-C Teflon Cap (010537) Purging tube
Click to Enlarge [Front View]Click to Enlarge [Side View]

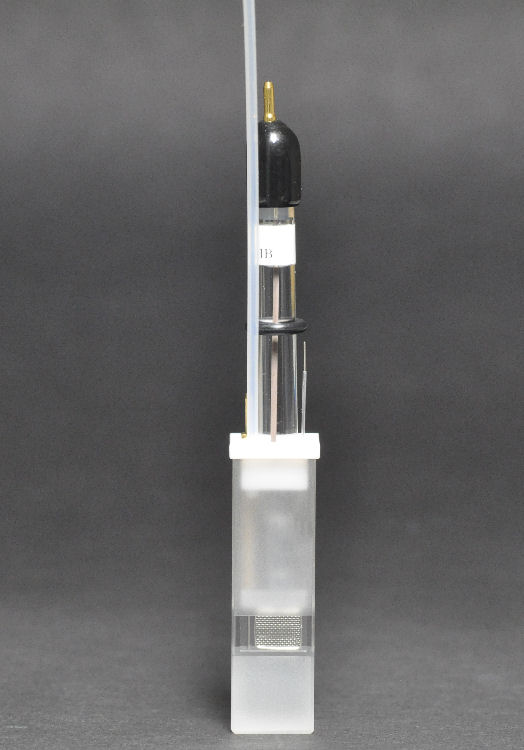

Click to Enlarge [Front View]

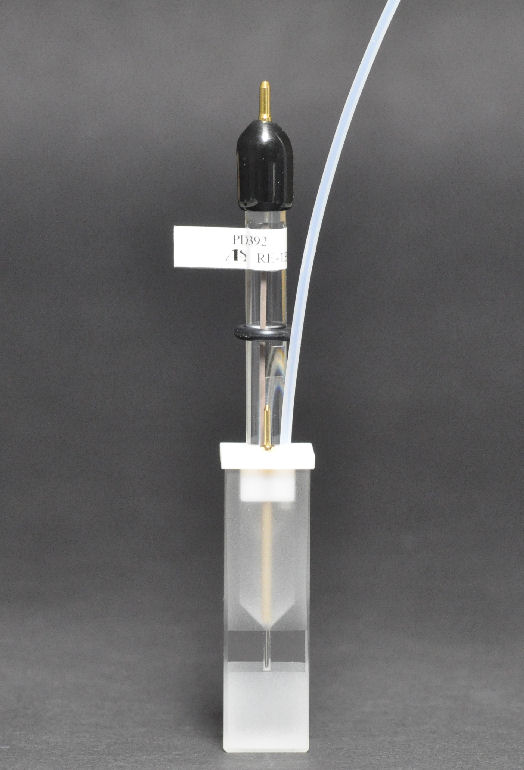

Click to Enlarge [Side View]Reference Electrode for SEC-C
Reference Electrode can be chosen optionally from below:
| Catalog No. | Description |
| 012167 | RE-1B Reference electrode (Ag/AgCl) |
| 012171 | RE-7 Non Aqueous reference electrode (Ag/Ag+) |

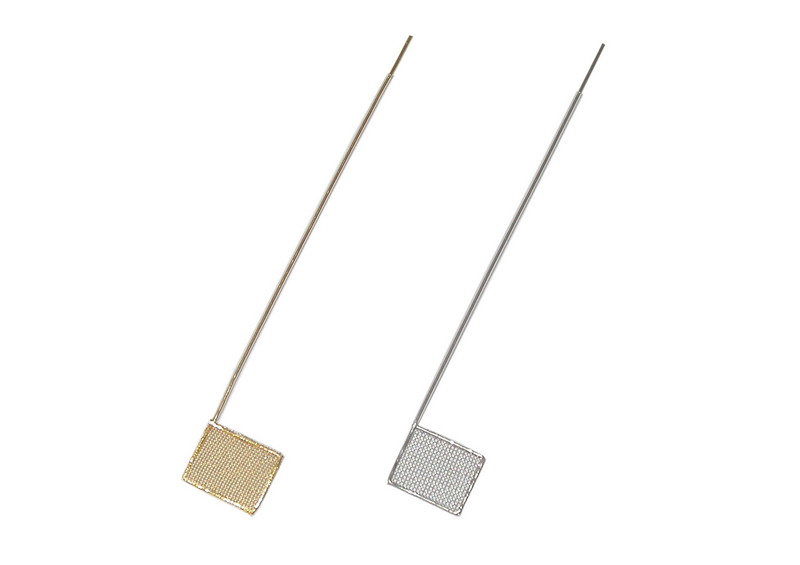

Working Electrode for SEC-C
Click photo to enlarge| Catalog No. | Description |
| 012017 | SEC-C Au Gauze working electrode |
| 011498 | SEC-C Pt Gauze working electrode |
