EQCMT Flow cell kit

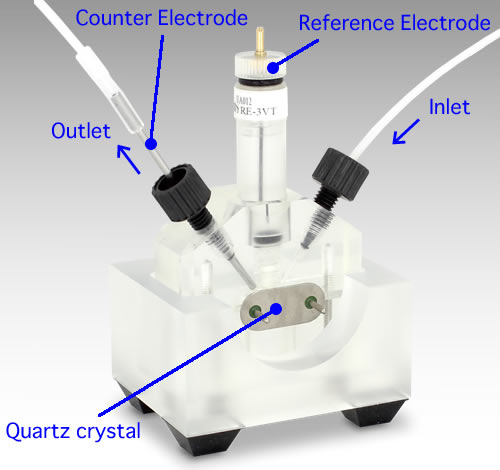

The quartz crystal microbalance (QCM) technique under electrochemical frequency, analysis of electrode can be measured by the gold quartz crystal electrode. This technique is very useful to determine many compounds such as metal proteins, metal ions and thiol-conjugated oligonucleotides. The construction for EQCMT flow cell is simple. The gold quartz crystal electrode is sandwiched between two blocks as shown below.

The two blocks of the EQCMT Flow cell are constructed using PEEK. It gives a high resistivity for chemical compounds.As well as QCM, these cell is reversible. With a inverted position of the blocks, it is possible to change from flow to static measurement.

EQCMT Flow cell

EQCMT Flow Cell Kit - Components

Catalog No. Description Components
013487 EQCMT Flow cell kit Polymethyl pentene Flow Cell
Polymethyl pentene Cell
Polymethyl pentene Cap
Teflon tube
Fitting PEEK (2 pcs)
Fixing Screw (2 pcs)
Silicon O-Ring (2 pcs)
Flow Cell Holder
Pt counter electrode
Stainless tube (Counter Electrode for flow cell)
Optional Products
010226 Quartz crystal Au (5 pcs)
013447 Quartz crystal Pt (3 pcs)
012772 Blank Crystal with holder (5 pcs)
013488 RE-3VT Reference electrode screw type (Ag/AgCl)
013489 RE-7VT Non Aqueous reference electrode(Ag/Ag+)
010534 Silicone O-ring (10 pcs)



Sample data

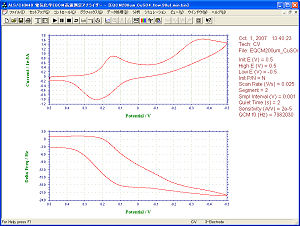

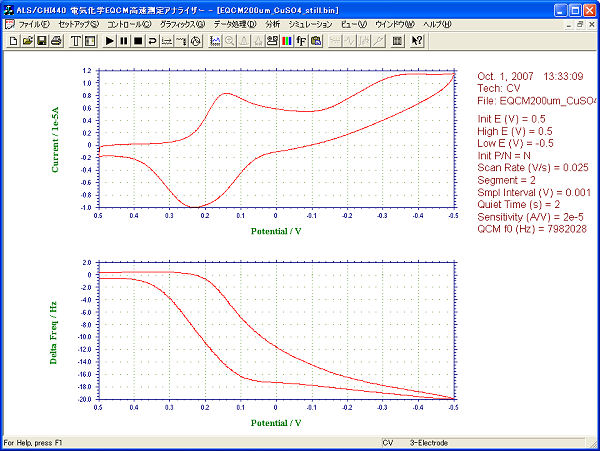

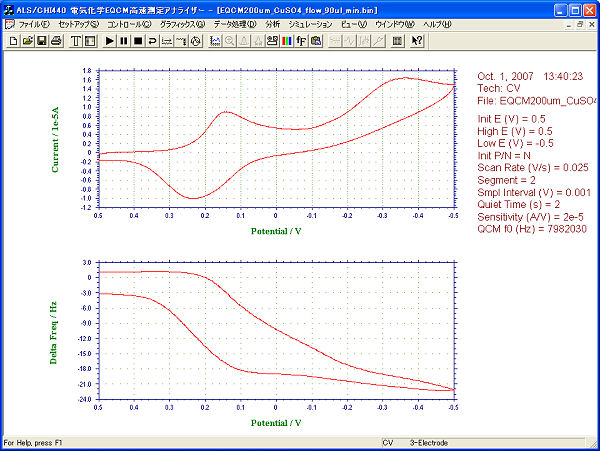

The cyclic voltammogram, at 25 mV/sec vs. Ag/AgCl, of the 0.2 mM Copper Sulfate solution using EQCMT flow cell, and the simultaneously QCM measurement, are shown in Figure 2A (Flow system) and Figure 2B (Static system).

Flow system mode measurement with flow rate at 90 µL/min Static system mode measurement
Figure 2A. Flow system, flow rate: 90 µL/min Figure 2B. Static systm
