ITO (Indium Tin Oxide) Electrode

This quite unique material transmits only visible light whereas it does not transmit UV radiation. Our ITO electrodes consist of 100 nm thick of ITO layer deposited on quartz or borosilicate glass substrate (0.5 mm thick).

ITO Electrode schema ITO quartz CV
Voltammogram obtained with quartz ITO
ITO electrode
ITO electrode

  • Quartz crystal glass
  • Borosilicate glass

The thickness of the ITO membrane is 100±20 nm, and the surface resistivity is 20 Ω/sq

Catalog No. Description
012658 SEC-2F/3F ITO electrode for flow cell (4 pcs)

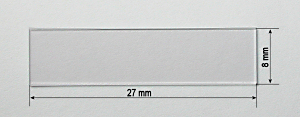

011465 ITO electrode 8x27 mm (12 pcs)
Other items
011827 ITO disk (4 inch)
011233 ITO electrode 10x10 mm (30 pcs)
010887 ITO electrode 10x20 mm (10 pcs)
IDA electrode list



ITO quartz transmittance graph

The light transmittance was compared with ITO electrode and Grid electrode (Au, Pt and Carbon) on a quartz glass as a reference. For ITO electrode, the light cannot be transmitted easily in ultraviolet range. The transmittance is about 10% at 250 nm of the wavelength. For wavelength above 350 nm, the transmittance is above 90%.

The thickness of the ITO membrane is 100±10 nm, and the surface resistivity is 15±1.5 Ω/sq.
Custom size is also available.

Catalog No. Description
013432 ITO11 electrode 8x27x1.1 mm (10 pcs)
013435 ITO05 electrode 8x27x0.5 mm (10 pcs)
Other items
013433 ITO11 electrode 10x10x1.1 mm (10 pcs)
013434 ITO11 electrode 10x20x1.1 mm (10 pcs)
013436 ITO05 electrode 10x10x0.5 mm (10 pcs)
013437 ITO05 electrode 10x20x0.5 mm (10 pcs)


ITO borosilicate light transmission graph

The light transmittance was compared with ITO electrode and Grid electrode (Au, Pt and Carbon) on a quartz glass as a reference. For ITO electrode, the light cannot be transmitted easily in ultraviolet range. The transmittance is about 10% at 280 nm of the wavelength. For wavelength above 400 nm, the transmittance is above 80%.
