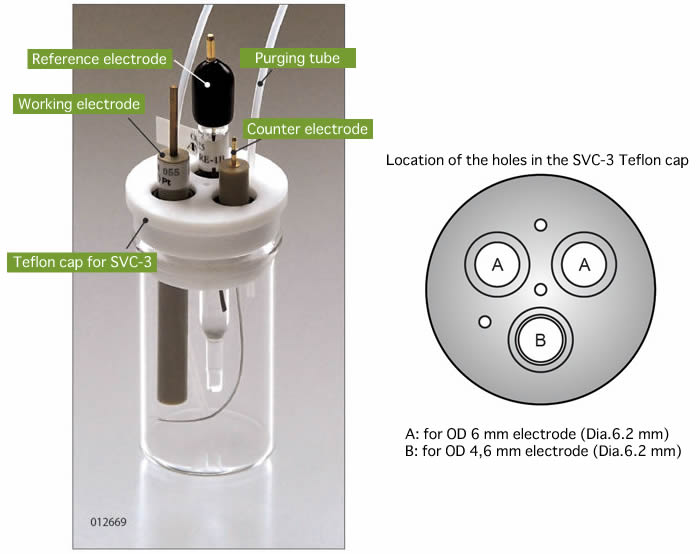

SVC-3 Voltammetry cell

By using this cell, researchers can run experiments free from gasificationed steam. Also, researchers can get rid of influence of oxygen in the cell by bubbling nitrogen gas. This cell can be utilized with CS-3A Cell Stand. This feature is well suited for measurements of ultraweak current.

SVC-3 Voltammetry cell

  • Feature
  • Content

・Sample volume from 5 to 10 mL
・For various types of electrode

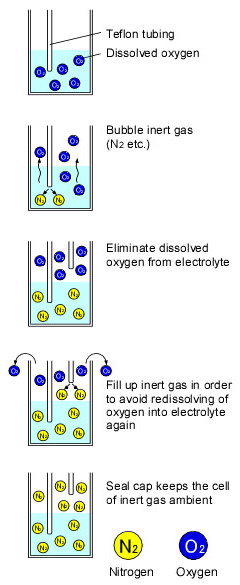

・Easy removal of the dissolved oxygen
SVC-3 Oxygen-free Voltammetry cell

Catalog No. Description
012669 SVC-3 Voltammetry cell
(001056) Sample vial (20 ml) 7 pcs
002233 Platinum counter electrode 5 cm
012671 Teflon cap for SVC-3
(010537) Purging tube 30 cm
012961 Platinum counter electrode 23 cm
012962 Gold counter electrode 23 cm
012963 Nickel counter electrode 23 cm

Working electrode and reference electrode are sold separately.
Each component could be purchased separately.
001056 Sample vial (20 mL) (10 pcs)
010537 Purge tube (ETFE) (1 m)
