Cross Flow Cell

Working electrodes for flow cell are mounted on blocks of PEEK. This resin protects the electrodes from external noise and allows researchers to utilize them regardless the content of mobile phase of HPLC because of their hard, organic solvent-resistance. Glassy carbon is usually chosen for the redox reaction study on liquid chromatography. Platinum, Gold, Carbon paste and Nickel electrodes are utilized for special purposes. Thin Layer Cell has been used as a electrode for research such as flow injection analysis (FIA) and the HPLC.

Note: Working electrode, reference electrode, gasket and connector leads (012912 0.04" Single lead connector (2pcs)) are sold separately.

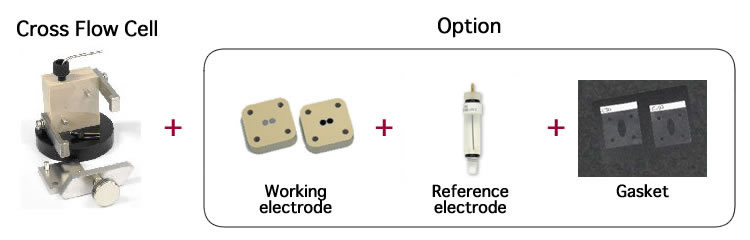

Cross Flow Cell Structure

• Features
• Working electrode
• Content
• Option

Cross Flow Cell is capable of quantitation at the level of 10-15 mol by the flow rate: 1 mL/min - 100 µL/min.

• Detection electrode for HPLC
• Electrode for flow injection
• Electrode for bio-sensor development

Structure of the working electrode

The dual glassy carbon electrode is considered to be a standard working electrode for cross flow cell. It is composed for two glassy carbon electrodes, of the 3 mm placed in series. Also it coul be rotated 90 degrees and applied as a parallel mode. The selectivity improves with the application of dual series electrode. In the parallel mode, identification of the substance, from the different applied voltage response ratio, is possible.
For the dual electrode, the electrode surface area doubles by using the jumper connector, and high sensitivity analysis becomes possible. For the working electrode, the platinum/gold electrode and others are also available.

Catalog No.	Description	Size
Working electrode
001000	Glassy Carbon Electrode	dia. 3 mm x 2 (dual type), Size: 25 x 25 mm
001002	Gold Electrode
001012	Platinum Electrode
001008	Silver Electrode
001004	Carbon Paste Electrode (*)
001009	Nickel Electrode
001006	Glassy Carbon/Gold Electrode
012583	Glassy Carbon/Platinum Electrode
012817	Dummy block for flow cell

(*) 001010 CPO Carbon paste oil base (1 g) is sold separately.
Note that the carbon paste is not filled up.

Cross flow cell contents
Item	Material	Quantity
Cross Flow cell block	PEEK*1	1
Flow cell base block	POM*2	1
Screw for base block	SUS*3	2
Screw for arm	SUS	2
Flow cell arm	SUS	2
Stainless plate for clamp	SUS	1
Clamp	SUS	1
Stainless pipe 5 cm	SUS	1
Fitting PEEK	PEEK	3
Silicon tube	Si	2 cm
Silicon tube	Si	28 cm
Teflon tube (for inlet)	ETFE	30 cm
Teflon tube (for outlet)	ETFE	80 cm
Jumper connector for dual electrodes	-	1

∗1 Polyether-ether-ketone
∗2 Polyacetal resin
∗3 Stainless Used Steel

Catalog No.	Description	Size
Reference electrode
014051	RE-3VT Reference electrode screw type (Ag/AgCl)
013850	RE-7VN Non Aqueous reference electrode screw type
014052	RE-61VT Reference electrode screw type for alkaline solution※
Gasket
001046	TG-2M Teflon Gasket	12 µm; 4 pcs
001047	TG-5M Teflon Gasket	25 µm; 4 pcs
001048	TG-6M Teflon Gasket	50 µm; 4 pcs
012801	TG-8M Teflon Gasket	100 µm; 4 pcs
001092	TG-11M Silicon Gasket	500 µm; 4 pcs
001093	TG-12M Silicon Gasket	1000 µm; 4 pcs
Optional items
012198	Counter electrode for Flow cells
001032	Cross Flow cell block
001535	1/16" PEEK tubing ID: 0.12 mm L: 3 m
001531	1/16" PEEK tubing ID: 0.25 mm L: 3 m
004130	Fitting PEEK (10pcs)
012912	0.04" Single lead connector (2 pcs)
002245	Jumper connector for dual electrodes

※ Note:
When using with 014052 RE-61VT Reference electrode screw type for alkaline solution, please avoid the below conditions, because some contents and working electrodes have a low tolerance for alkaline solution.
➀ High concentrated alkaline solution
➁ High temperature condition
➂ Long time application
