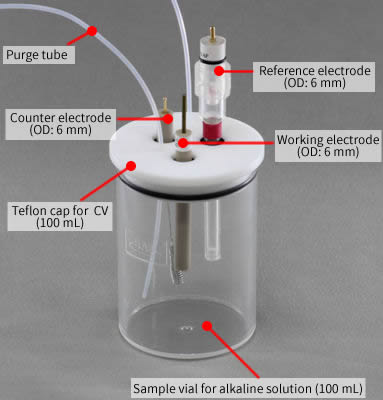

Large volume voltammetry cell
For large sample volume, as 50 to 80 mL, the combination of the items below can be used.
It is possible to combine the items, while considering the compatibility to the measured sample.
- Sample vial and Teflon cap
- Electrodes
| Catalog No. | Description | Material |
| Cap | ||
| 013596 | Teflon cap for CV (100mL) | Teflon |
| Vial | ||
| 013580 | Sample vial for alkaline solution (100mL) (10pcs) | Polymethyl pentene |
| 012632 | Sample vial (100mL) | HG |
| 012652 | Water-Jacketed glass cell (100mL) | HG |
| Optional item | ||
| 010537 | Purge tube (ETFE) (1m) | Teflon |
| 002247 | O-ring for CV electrode (10pcs) | |
| 012108 | RE-PV Preservative vial for reference electrode | |
| 013223 | PK-3 Electrode Polishing kit | |
Working electrode
Use one with an outer diameter of 6 mm from the working electrode line up.
Reference electrode
For water-based samples, those with an outer diameter of 6 mm can be used.
(Other than RE-1S and RE-3VT can be used.)
For non-aqueous (organic) solvent-based samples, those with an outer diameter of 6 mm can be used.
(Other than RE-7SN and RE-7VN can be used.)
Calomel electrode, reference electrode for alkali and reversible hydrogen electrode can also be used.
Also, the reference electrode can be selected by the sample to be measured.
Counter electrode
For the counter electrode, those with an outer diameter of 6 mm can be used.
(The electrode length of 5 cm and 23 cm can be used.)
