Spectroelectrochemical set up using Model 2325

Spectroelectrochemistry (SEC) is aimed at the investigation of electrochemical reaction mechanism and the interface structure between electrolyte solution and electrode. Remarkable progress in this field and related technology enables SEC to be applied in wide areas. Nowadays, the relation between absorbance and potential for reversible or quasi-reversible system is theoretically elucidated, on which basis the analysis of electrochemical characteristics becomes possible for the system otherwise difficult with only the result of voltammogram.

Here, we will introduce two systems set-up (flow system and batch), for spectroelectrochemical measurement.

  • Flow system
  • Batch system
  • Related product

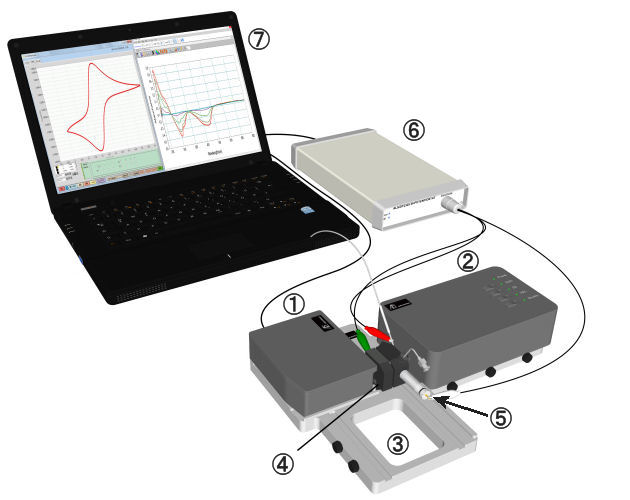

Schematic diagram for Spectroelectrochemical measurement in batch system. 1. SEC2021 Spectrometer

2. SEC2022 Deuterium halogen light source

3. SEC2024 Platform

4. SEC-3F Spectroelectrochemical flow cell

5. RE-3VT Reference electrode screw type (Ag/AgCl)

6. Model 2325 Bi-Potentiostat

7. PC











1 ∼ 3 SEC2020 Spectrometer system (Cat. No. 013609) is a spectrometer that enables various spectrometric measurements, focusing on spectroelectrochemical measurement.
4 SEC-3F Spectroelectrochemical flow cell
5 Reference electrode, it is sold separately.
There is two types: for aqueous solution (RE-3VT Reference electrode Screw type (Ag/AgCl) (Cat. No. 013488)) and for non aqueous solution (RE-7VN Non Aqueous reference electrode screw type (Cat. No. 013850)).
6 Electrochemical analyzer
7 The minimum recommended PC configuration is:
- Processor: 1GHz or higher
- RAM: 1 GB or higher
- Hard Disk: 100 MB or higher
- Screen Resolution: 1024 x 768 or higher
- Operating System: WindowsTM 8.1 ⁄ 10
- Software: Microsoft .NET Framework 3.5
∗ Only the versions supported by Microsoft are supported.
Please refer to the Windows lifecycle fact sheet.
(Note: Windows 10 in S mode is not supported, please switch out of S mode in Windows 10.)



For general application without SEC2020 Spectrometer system

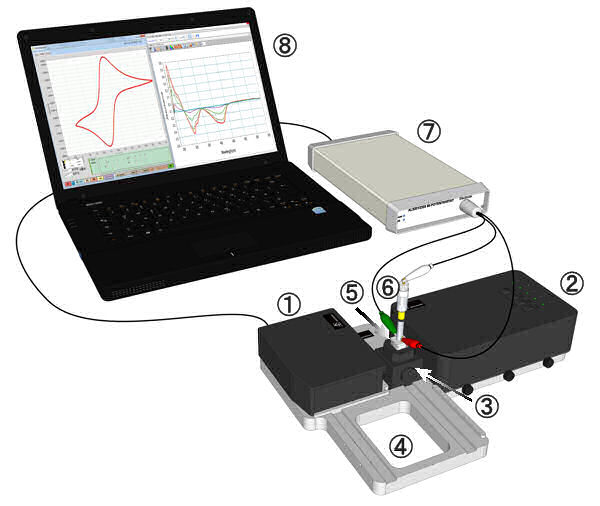

Schematic diagram for Spectroelectrochemical measurement in batch system. 1. SEC2021 Spectrometer

2. SEC2022 Deuterium halogen light source

3. SEC2023 Cuvette holder

4. SEC2024 Platform

5. SEC-CT Thin Layer Quartz Glass
    Spectroelectrochemical cell Kit

6. RE-1BP Reference electrode (Ag/AgCl)

7. Model 2325 Bi-Potentiostat

8. PC









1 ∼ 4 SEC2020 Spectrometer system (Cat. No. 013609) is a spectrometer that enables various spectrometric measurements, focusing on spectroelectrochemical measurement.
5 SEC-C SEC-CT Thin Layer Quartz Glass Spectroelectrochemical cell Kit
Components of the SEC-C:
- SEC-C Pt or Au Gauze working electrode
- SEC-C/C05 Pt counter electrode
- SEC-CT Thin Layer Quartz Glass cell
- SEC-C Teflon Cap
- Purge tube (ETFE)
6 Reference electrode is sold separately.
There is two types: for aqueous solution and for non aqueous solution.
7 Electrochemical analyzer
8 The minimum recommended PC configuration is:
- Processor: 1GHz or higher
- RAM: 1 GB or higher
- Hard Disk: 100 MB or higher
- Screen Resolution: 1024 x 768 or higher
- Operating System: WindowsTM 8.1 ⁄ 10
- Software: Microsoft .NET Framework 3.5
∗ Only the versions supported by Microsoft are supported.
Please refer to the Windows lifecycle fact sheet.
(Note: Windows 10 in S mode is not supported, please switch out of S mode in Windows 10.)
