Spectroelectrochemical set up using SEC2120 and Model 3325

Spectroelectrochemistry (SEC) is aimed at the investigation of electrochemical reaction mechanism and the interface structure between electrolyte solution and electrode. Remarkable progress in this field and related technology enables SEC to be applied in wide areas. Nowadays, the relation between absorbance and potential for reversible or quasi-reversible system is theoretically elucidated, on which basis the analysis of electrochemical characteristics becomes possible for the system otherwise difficult with only the result of voltammogram.

Here, we will introduce two systems set-up (flow system and batch), for spectroelectrochemical measurement.

• Flow system
• Batch system
• Related product



➀ SEC2121 Spectrometer
➁ SEC2122 Deuterium halogen light source
➂ SEC2124 Platform
➃ SEC-3F Spectroelectrochemical flow cell
➄ Reference electrode screw type
➅ Model 3325 Bi-Potentiostat
➆ PC

1 ∼ 3	SEC2120 Spectrometer system (Cat. No. 014109) is a spectrometer that enables various spectrometric measurements, focusing on spectroelectrochemical measurement.
4	SEC-3F Spectroelectrochemical flow cell
5	Reference electrode screw type, it is sold separately. There is three types: for aqueous solution (RE-3VT Reference electrode Screw type (Ag/AgCl) (Cat. No. 014051)), for non aqueous solution (RE-7VN Non Aqueous reference electrode screw type (Cat. No. 013850)) and for alkaline solution (RE-61VT Reference electrode screw type for alkaline solution (Cat. No. 014052))※.
6	Model 3325 Bi-Potentiostat
7	The minimum recommended PC configuration is: - Processor: 1GHz or higher - RAM: 8 GB or higher (16GB or higher) - Hard Disk: 256 GB SSD or higher - Screen Resolution: 1024 x 768 or higher - Operating System: Windows 11∗1 - Software: Microsoft .NET Framework 3.5∗2



∗1 Only the versions supported by Microsoft are supported. Please refer to the Windows lifecycle fact sheet.
∗2 Versions other than Microsoft .NET Framework 3.5 will not work.

※ Note:
When using with 014052 RE-61VT Reference electrode screw type for alkaline solution, please avoid the below conditions, because some contents and working electrodes have a low tolerance for alkaline solution.
➀ High concentrated alkaline solution
➁ High temperature condition
➂ Long time application

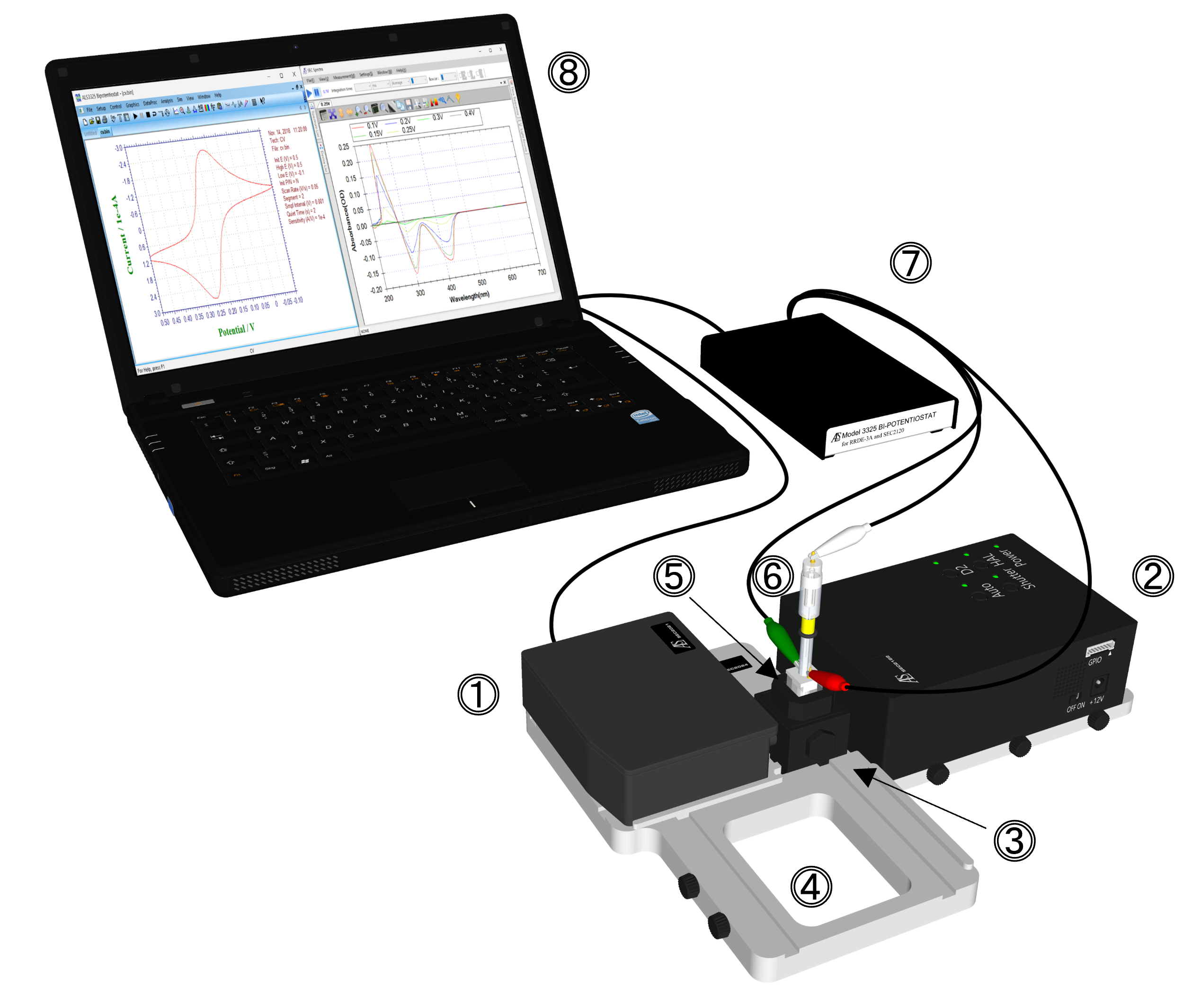

For general application without SEC2120 Spectrometer system



➀ SEC2121 Spectrometer
➁ SEC2122 Deuterium halogen light source
➂ SEC2123 Cuvette holder
➃ SEC2124 Platform
➄ SEC-CT Thin Layer Quartz Glass Spectroelectrochemical cell Kit
➅ RE-1BP Reference electrode (Ag/AgCl)
➆ Model 3325 Bi-Potentiostat

1 ∼ 4	SEC2120 Spectrometer system (Cat. No. 014109) is a spectrometer that enables various spectrometric measurements, focusing on spectroelectrochemical measurement.
5	SEC-CT Thin Layer Quartz Glass Spectroelectrochemical cell Kit Components of the SEC-C: - SEC-C Pt or Au Gauze working electrode - SEC-C/C05 Pt counter electrode - SEC-CT Thin Layer Quartz Glass cell - SEC-C Teflon Cap - Purge tube (ETFE)
6	Reference electrode is sold separately. There is two types: for aqueous solution and for non aqueous solution.
7	Model 3325 Bi-Potentiostat
8	The minimum recommended PC configuration is: - Processor: 1GHz or higher - RAM: 8 GB or higher (16GB or higher) - Hard Disk: 256 GB SSD or higher - Screen Resolution: 1024 x 768 or higher - Operating System: Windows 11∗1 - Software: Microsoft .NET Framework 3.5∗2



∗1 Only the versions supported by Microsoft are supported. Please refer to the Windows lifecycle fact sheet.
∗2 Versions other than Microsoft .NET Framework 3.5 will not work.



SEC2120 Spectrometer system

SEC-CT Spectroelectrochemical cell (1.0 mm)

SEC-C05T Spectroelectrochemical cell (0.5 mm)

SEC-3F Spectroelectrochemical flow cell

Model 3325 Bi-Potentiostat
