2. Instruments & accessories

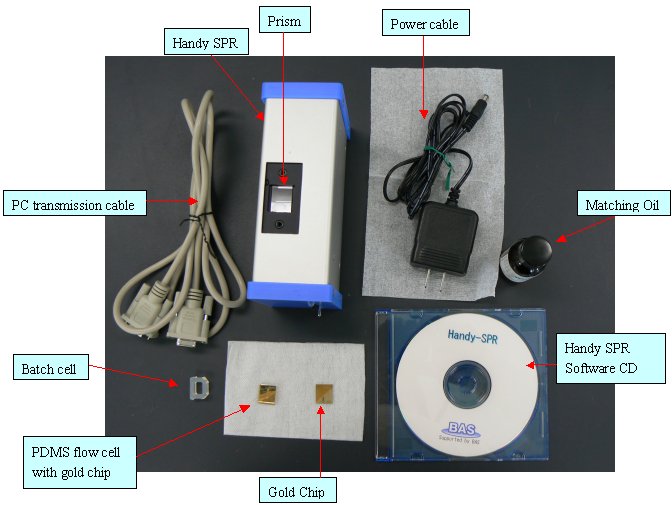

- Instrument and accessories required for Handy SPR application:
1. Handy SPR instrument (PS-0109)
2. PC connecting cable
3. Power supply adaptor with code
4. Matching Oil
5. Gold chip
6. Batch cell
7. PDMS flow cell
8. Micro-pump
9. Micro-syringe
10. FEP tube and tube connector
11. Software.
| Description | |
| Detection method: | Surface Plasmon Resonance |
| Measurement Configuration: | Kretschmann configuration |
| Measuring area: | 65 - 75 Degrees |
| Size of Gold Chip: | 17 x 17 mm |
| Light Source: | LED 770 mm (fwhm 50 nm) |
| Prism Material: | BK7 |
| Determination Part: | CCD Line Sensor (2048 pixel) |
| Dimension: | 170 x 100 x 50 mm |
| Weight: | 2 kg |
| Software: | Control & Data Transmit Software |
| Catalog No. | Description |
| 012072 | Handy SPR PS-0109 |
| Components | |
| Transmission cable | |
| Power cable | |
| Software | |
| 011870 | Matching oil |
| 011869 | Gold chip |
| 011871 | PDMS flow cell |
| Optional | |
| 012085 | Model 100 Syringe pump 2 channels |
