Reference electrode selection - Ag/AgCl type II
This is the standard type of aqueous reference electrode in Polymethyl pentene insulation and ceramic liquid junction.
| 013613 | 013488 | 013691 |
| RE-1BP Reference electrode (Ag/AgCl) |

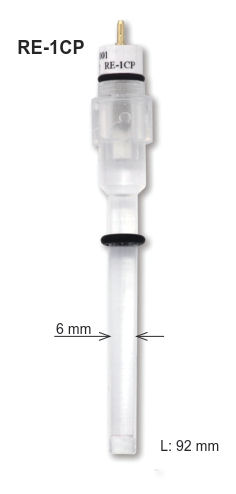

RE-3VT Reference electrode screw type (Ag/AgCl) | RE-1CP Reference electrode (Ag/AgCl/Saturated KCl) |
 |
 |
 |
| Reference potential | ||
| AgCl+e=Ag+Cl- E0=196 mV vs RHE (25 deg C) |
AgCl+e=Ag+Cl- E0=196 mV vs RHE (25 deg C) |
AgCl+e=Ag+Cl- E0=198 mV vs RHE (25 deg C) |
| The reference potential is the measured value using RHEK reversible hydrogen electrode kit (Cat. No. 013597).} | ||
| -Material: Polymethylpentene is used, because of the excellent chemical resistance characteristics. -Liquid junction: Ceramics is used. (∗If you keep the electrode immersed in an alkaline solution for a long time, life time will be shortened.) |
||
| Aqueous reference electrode with a 3 M NaCl as an internal solution. |
Aqueous reference electrode specific for ALS line-up flow cell, as Cross flow cell, Radial flow cell, EQCM flow cell and SEC-Spectroelectrochemical flow cell. | Aqueous reference electrode with a saturated KCl as an internal solution. |
